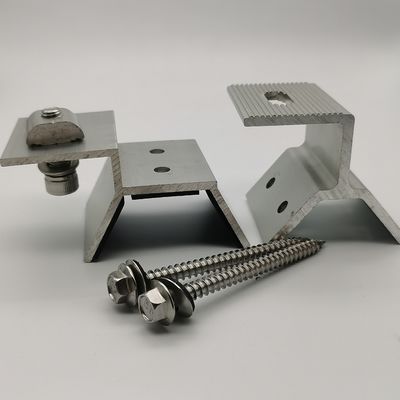

H-Beam Solar Grounding Clip | Aluminium Mid Mount Clamp
  • name
  • name
  • name

H-Beam Solar Grounding Clip | Aluminium Mid Mount Clamp

MOQ: 500PCS
Price: Negotiable
Standard Packaging: Carton Box
Delivery Period: 10-15 work days
Payment Method: T/T
Supply Capacity: 3000000pcs/mon
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XuanQing
Model Number
Roof Clamp,carport clamp,ground brackets clamp
Document
Product Brochure PDF
Warranty:
1 Year
After-sale Service:
Online Technical Support
Project Solution Capability:
Graphic Design, Cross Categories Consolidation
Application:
Apartment
Design Style:
Modern
Type:
Solar Panel Mounting Aluminum Rail Connector
Highlight:
Aluminum Frame Solar Panel Rail Clamps, PV Mounting Solar Panel Rail Clamps, Apartment Solar Rail Clamps
Product Description
H-Beam Solar Grounding Clip | Aluminium Mid Mount Clamp
Product Specifications
Warranty 1 Year
After-sale Service Online Technical Support
Project Solution Capability Graphic Design, Cross Categories Consolidation
Application Apartment
Design Style Modern
Type Solar Panel Mounting Aluminum Rail Connector
Product Description

This versatile and durable clamp serves as both a secure mid-module mounting point and an integrated grounding solution specifically designed for solar panels installed on H-beam (or I-beam) style mounting rails. Crafted from high-strength, corrosion-resistant aluminum alloy, it provides a robust and electrically conductive connection.

The clamp securely grips the solar panel frame onto the top flange of the H-beam rail at the module's mid-point. Its integrated grounding feature incorporates a precisely machined tooth or lug that bites into the panel frame's anodized layer upon tightening, creating a reliable, code-compliant grounding path (bonding the panel frame to the rail).

Key Features
  • Dual Function: Combines mid-panel clamping with integrated module grounding in one component
  • H-Beam Specific: Optimized profile to fit the top flange of standard H-beam (I-beam) solar rails
  • Superior Grounding: Integrated grounding tooth/lug bites into panel frame for UL/FCC/CE compliant grounding
  • Robust Construction: Made from high-grade, corrosion-resistant aluminum alloy (typically 6005-T5 or 6061-T6)
  • Weather Resistant: Anodized finish protects against corrosion in diverse climates
  • Easy Installation: Simplifies mounting and grounding process, saving time and labor
  • Secure Hold: Provides firm, reliable clamping force for module stability
  • Wide Compatibility: Designed for common module frame heights (typically 30mm-50mm)
Technical Specifications
Accessory Name Function Features
Rail Support and fix solar panels High strength and corrosion resistance
Mid clamp Connect and fix solar panels Made of aluminum alloy, ensuring stability
Solar clamp Fix solar panels High strength and corrosion resistance
Connectors Connect various components Improve the stability and reliability of the solar mounting system
Bases Support the entire system Made of aluminum alloy and corrosion-resistant
Aluminum nuts Fix various components High strength and corrosion resistance
H-Beam Solar Grounding Clip | Aluminium Mid Mount Clamp 0 H-Beam Solar Grounding Clip | Aluminium Mid Mount Clamp 1
Manufacturer Profile

Foshan Xuanqing Company specializes in manufacturing aluminum accessories for photovoltaic systems, offering custom mold services for components like mid clamps and side clamps.

The company operates from a 4500 square meter production base with a fully modern production line, including 13 automatic lines, 3 ordinary production lines, and 36 stamping equipment. Xuanqing provides comprehensive services from product design to production, accommodating personalized product demands with independent mold-opening capabilities that ensure fast turnaround, high precision, and short production cycles.

H-Beam Solar Grounding Clip | Aluminium Mid Mount Clamp 2 H-Beam Solar Grounding Clip | Aluminium Mid Mount Clamp 3
Packaging & Delivery
H-Beam Solar Grounding Clip | Aluminium Mid Mount Clamp 4
