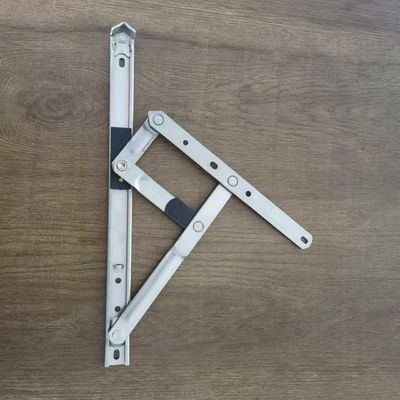

304 Stainless Steel Circular Groove Top Hung Friction Hinge For Aluminum Window

MOQ:	500PCS
Price:	Negotiable
Standard Packaging:	Carton Box
Delivery Period:	10-15 work days
Payment Method:	T/T
Supply Capacity:	3000000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XuanQing

Model Number

SH-113

Document

Warranty:

3 Years

After-sale Service:

Online Technical Support, Onsite Training, Other

Project Solution Capability:

Graphic Design, Total Solution For Projects, Others

Application:

All The Scenarios

Design Style:

Modern

Type:

Friction Stay

Highlight:

Circular Groove Top Hung Friction Hinge

Stainless Steel Top Hung Friction Hinge

Window Top Hung Friction Hinge

Product Description

304 Stainless Steel Circular Groove Top Hung Friction Hinge For Aluminum Window

Product Attributes

Attribute	Value
Warranty	3 years
After-sale Service	Online technical support, Onsite Training, Other
Project Solution Capability	graphic design, total solution for projects, Others
Application	All the scenarios
Design Style	Modern
Type	Friction stay

Product Description

The top hung aluminum window's 304 stainless steel circular groove friction stay is designed for all scenarios. Made of durable and corrosion-resistant 304 stainless steel, it offers a stable fit for the window. Specifically for top hung aluminum windows, it supports the weight and controls opening and closing. The circular groove design ensures smooth operation and prevents sudden movements. With enhanced durability, it can withstand heavy use. Versatile for different settings, it provides a reliable solution. Ideal for residential, commercial, and industrial applications.

Quick Details

Material: 304 stainless steel, known for durability and corrosion resistance.
For: Top hung aluminum windows.
Design Feature: Circular groove for stability.
Function: Supports window, controls opening and closing.
Benefits: Smooth operation, enhanced durability, suitable for all scenarios.

Specification

13.5 Square slot raised four-link stainless steel upper suspension brace hinge series Installation dimension (unit :mm)

specification	A	B	E	F	G	H	I	J	K	L	M	N
10''	258	251		145	44	30	200	190	112	58	38
12''	301	293	210	181	44	30	175	135	58	38
14''	348	339	222	193	44	30	202	160	58	38
16''	402	394	227	198	44	30	236	195	60	42
18''	454	445	222	193	44	30	256	216	58	38
20''	499	490	260	231	44	30	298	246	58	38
22''	551	542	268	239	44	30	329	287	216	93	58	38
24''	598	589	274	245	44	30	373	331	249	135	60	42

specification	Maximum window height (mm)	Maximum window width (mm)	Material weight (kg)	Opening Angle
10''	900	400	20	±87°
12''	900	500	25	±87°
14''	1000	600	28	±87°
16''	1200	700	30	±87°
18''	1200	800	35	±87°
20''	1200	900	38	±87°
22''	1200	1000	42	±87°
24''	1200	1200	45	±87°
